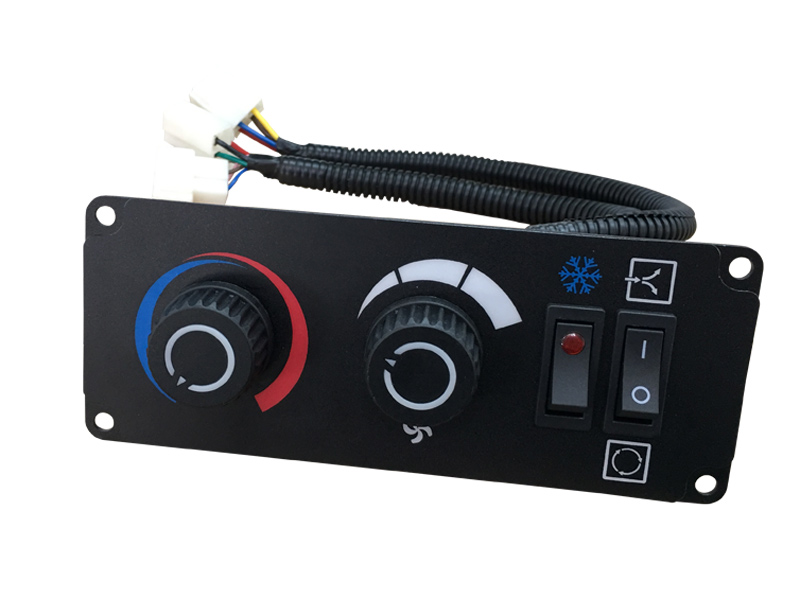

CG220220 air conditioner controller (manual) applies to the internal climate control for construction vehicle.
Main function
|
Cooling |
YES |
|
Heating |
YES |
|
Fresh Air |
YES |
|
Auto Control |
NO |
|
Power lost memory |
NO |
|
Error alarm |
NO |
|
Air flow regulation |
3 grades |
|
Temp regulation |
Linear setting |
Application:
Bergstrom,HIGER
|
Power supply |
DC12/24V |
|
Power consumption |
3W |
|
Current |
Max.300mA |
|
Dimensions |
160X64mm |
|
Input |
1) ACC(battery) |
|
Output |
1) Fan high 2 Fan medium 3) Fan low 4) Compressor clutch 5)Heating 6) Fresh air |
|
Display |
Marked |
|
Ambient temperature |
-30℃—80℃ 5%－95%RH Non-condensing |
|
Storage temperature |
-10℃—70℃ 5%－95%RH Non-condensing |
|
Protection |
IP43 |
|
EMC |
EN50081&EN50082-2 |
|
Security level |
Applied to EN61010-II, Pollution degree: II |
|
Weight |
315g |
Dimension drawing
a. With big current (20A max) output, it could drive the fan motor directly without extended relay.
b. Matching work with the voltage control water valve. It may get the continuous control of the heating valve, so as to get the comfortable climate environment
c. Replace the outdated manual valve control. More accurate and more convenient
d. Mature product
