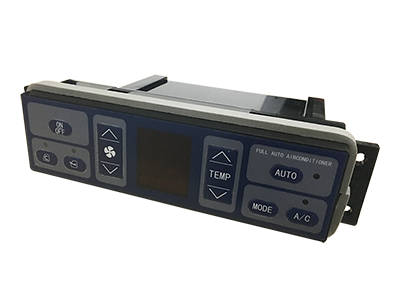

CG220201 fully-automatic air conditioner controller applies to climate control for construction vehicle.
Main function
|
Cooling |
YES |
|
Heating |
YES |
|
Ventilation |
YES |
|
Fresh Air |
YES |
|
Auto Control |
YES |
|
Power lost memory |
YES |
|
Error alarm |
YES |
|
Auto over-voltage protection |
YES |
|
Air flow regulation |
3 grades |
|
Demist |
YES |
|
Interior temp display |
YES |
The shift function (check by manual operation)
-Running time query
-Air outlet temp display
-Compel cooling
-Compel heating
Application:
YUTONG Heavy Industries, LIUGONG Machinery, XGMA Machinery, SANY Heavy Industry.
|
Power supply |
DC24V/12V |
|
Power consumption |
3w |
|
Current |
Max.200mA |
|
Dimensions(mm) |
168x66x54mm |
|
Input |
1) Interior temp. sensor 2)Defrost sensor 3)Pressure switch 4)Power (generator) 5)ACC power 6)Backlight power |
|
Output |
1)Compressor clutch 2)Fan high 3)Fan medium 4)Fan low 5)Fresh air 6)Heating 7)Demist |
|
Display |
LED |
|
Ambient temperature |
-30°c—80°c 5%-95%RH Non-condensing |
|
Storage temperature |
-10°c—70°c 5%-95%RH Non-condensing |
|
Display precision |
Temp value. Dual digit display, Accuracy,1 °c |
|
Protection |
IP43 |
|
EMC |
EN50081&EN50082-2 |
|
Security level |
Applied to EN61010-II,Pollution degree :II |
|
Weight: |
230g |
Dimension drawing
a. Heating & cooling control
b. Truck, bus, Van, kinds of application
c. 3-Speed fan control
d. Program customer-design
1. CG220201-a
a. PWM, 7-SPEED fan
b. Heating, cooling auto control
c. Program customer-design
d. Custom LOGO
