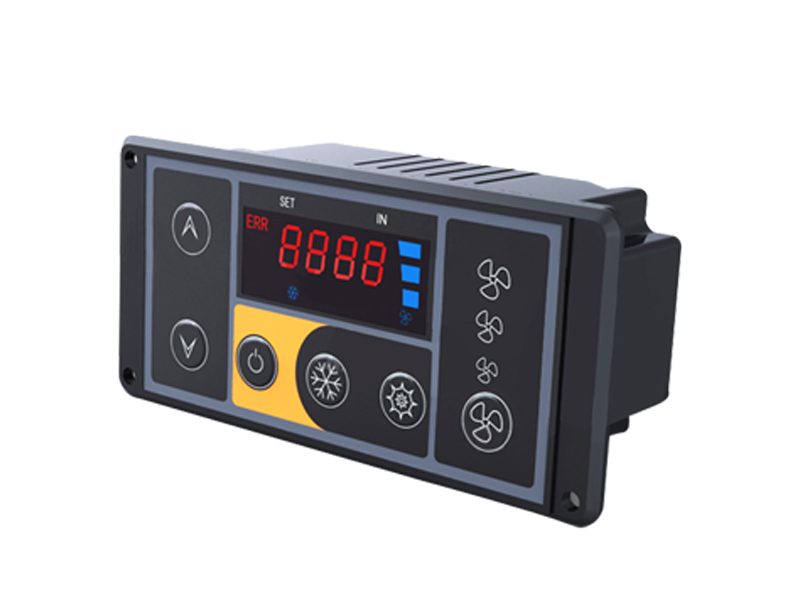

CG220209 construction vehicle & truck HVAC controller (LED)

CG220209 construction vehicle & truck HVAC controller (LED)

Main functions:

  • Cooling
  • Warming
  • Error alarm
  • Power lost memory
  • 3-grade air-flow adjustment

Send E-mailget price

Share with:
  • description
  • technical data
  • advantage
  • Variant Products
  • Inquiry

CG220209 digital air conditioner controller applies to internal climate control for construction vehicle, truck, van, etc



Main function



Cooling

YES

Heating

YES

Ventilation

NO

Fresh Air

NO

Power lost memory

YES

Error alarm

YES

Auto over-voltage protection

YES

Air flow regulation

3 grades

Interior temp display

YES





The shift function (check by manual operation)

-Compel cooling

-Check defrost temp



Application:

 FOTON,CANCOO

Power supply

DC12V/24V

Power consumption

2 W

Current

Max.200mA

Dimensions

132X62X54mm

Input

1) Interior temp. sensor

2) Defrost sensor

3) Pressure sensor

4) A/C power(generator)

5) ACC(battery)

6) Backlight power

Output

1) Fan high

2) Fan medium

3) Fan low

4) Compressor clutch

5) Heating

Display

LED

Ambient temperature

-30℃—80 5%95%RH Non-condensing

Storage temperature

-10℃—70 5%95%RH Non-condensing

Display precision

Temp value. Dual digit display, Accuracy,1 °c

Protection

IP43

EMC

EN50081&EN50082-2

Security level

Applied to EN61010-II, Pollution degree: II

Weight

170g











Dimension drawing

a.       Full function: Heating, cooling, fan speed control, Air flow angle control, Fresh air ventilation

b.       Standard product, fast delivery

c.       Mature technology, stable design

d.       Program customer design

e.       Custom LOGO

1.       CG220209-a



a.       Full function: Heating, cooling, fan speed control, Air flow angle control, Fresh air ventilation

b.       Front panel customer design

c.       Standard product, fast delivery

d.       Mature technology, stable design

e.       Program customer design

f.        Custom LOGO





2.       CG220209-b



a.       Full function: Heating, cooling, fan speed control, Air flow angle control, Fresh air ventilation

b.       Front panel customer design

c.       Standard product, fast delivery

d.       Mature technology, stable design

e.       Program customer design

f.        Custom LOGO

3.       CG220209-c



a.       Full function: Heating, cooling, fan speed control, Air flow angle control, Fresh air ventilation

b.       Front panel customer design

c.       Standard product, fast delivery

d.       Mature technology, stable design

e.       Program customer design

f.        Custom LOGO
