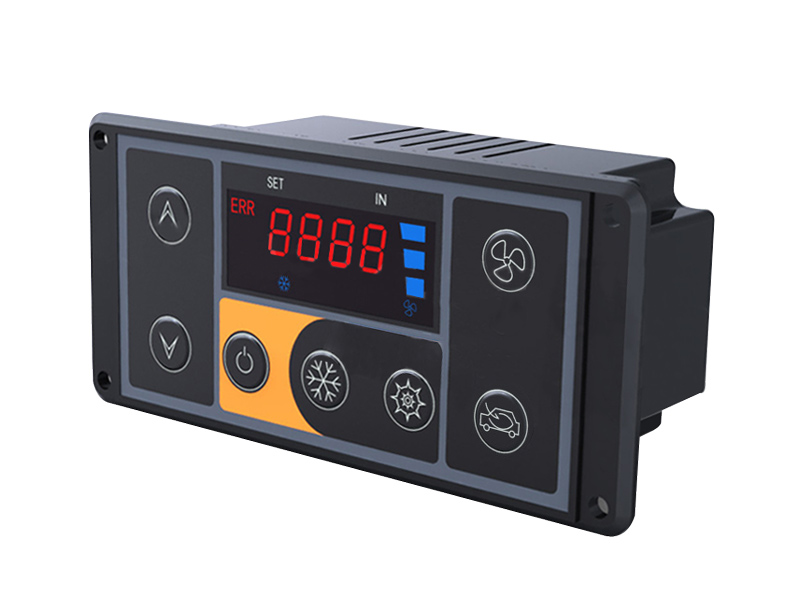

CG220207 auto digital controller applies to internal climate control for construction vehicle, truck, etc.
Main function
|
Cooling |
YES |
|
Heating |
YES |
|
Ventilation |
YES |
|
Fresh Air |
YES |
|
Power lost memory |
YES |
|
Error alarm |
YES |
|
Auto over-voltage protection |
YES |
|
Air flow regulation |
3 grades |
|
Interior temp display |
YES |
The shift function (check by manual operation)
-Compel cooling
-Check defrost temp
Application:
FOTON,YUXIN Automotive Air Conditioner, LIUGONG Machinery, KOBELCO
|
Power supply |
DC12V/24V |
|
Power consumption |
2 W |
|
Current |
Max.200mA |
|
Dimensions |
132X62X54mm |
|
Input |
1) Interior temp. sensor 2) Defrost sensor 3) Pressure sensor 4) A/C power(generator) 5) ACC(battery) 6) Backlight power |
|
Output |
1) Fan high 2) Fan medium 3) Fan low 4) Compressor clutch 5) Heating 6)Fresh air on 7) Fresh air off |
|
Display |
LED |
|
Ambient temperature |
-30℃—80℃ 5%－95%RH Non-condensing |
|
Storage temperature |
-10℃—70℃ 5%－95%RH Non-condensing |
|
Display precision |
Temp value. Dual digit display, Accuracy,1 °c |
|
Protection |
IP43 |
|
EMC |
EN50081&EN50082-2 |
|
Security level |
Applied to EN61010-II, Pollution degree: II |
|
Weight |
185g |
Dimension drawing
.jpg)
a. Full function: Heating, cooling, fan speed control, Air flow angle control, Fresh air ventilation
b. Standard product, fast delivery
c. Mature technology, stable design
d. Program customer design
e. Custom LOGO
1. CG220207-a
a. Cooling only, without heating
b. Standard product, fast delivery
c. Mature technology, stable design
d. Program customer design
e. Custom LOGO
2. CG220207-b
.jpg)
a. Cooling&Heating, 2-speed fan
b. Standard product, fast delivery
c. Mature technology, stable design
d. Program customer design
e. Custom LOGO
