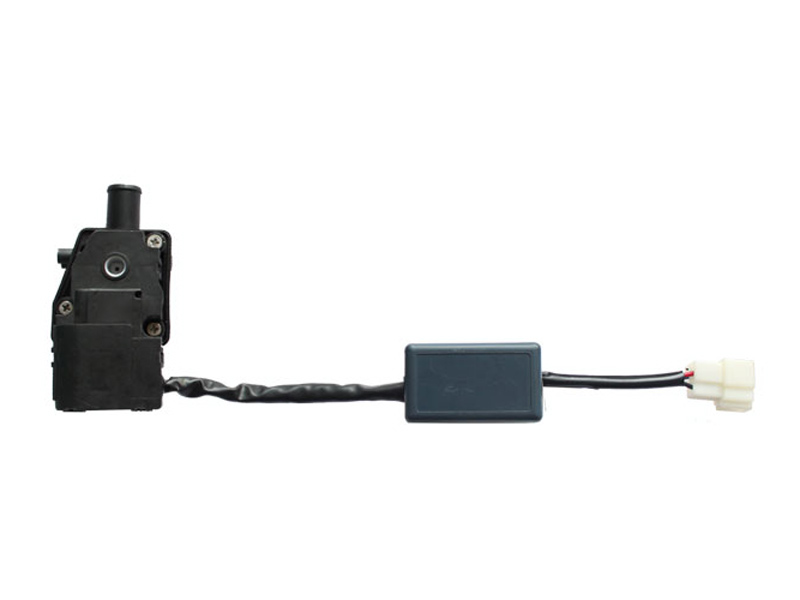

The valve opening is controlled by a adjustable voltage signal.
This voltage signal could be intputed from control unit directly, or generated by a manual potentiometer.
Application:
This voltage signal could be intputed from control unit directly, or generated by a manual potentiometer.
Application:
| Code | Voltage control water valve |
| Power supply | DC12V/DC24V |
| Control mode | adjustable voltage |
| Medium | cold ,hot water |
| Medium temp | -5°c--100°c |
| Flow characteristic | Linear |
| Max diameter | DN13 |
| Leakage rate | <1L/h(no leakage at factory) |
| Interface form | hoop |
| Rotation angle | 90°c |
| Installation | Horizontally upright |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Maintenance | Maintenance free |
| Dimensions |
112x57x72mm(water valve) |
| Weight | 230g |
| Quality certification | TS16949/ISO9001 |
Dimension Drawing:
Connection
a. Inner ball valve design.
b. Voltage control, more accurate linear water flow
c. Stable, mature product
d. Economic cost. Mass production
e. The length of leading wire customer-design
b. Voltage control, more accurate linear water flow
c. Stable, mature product
d. Economic cost. Mass production
e. The length of leading wire customer-design

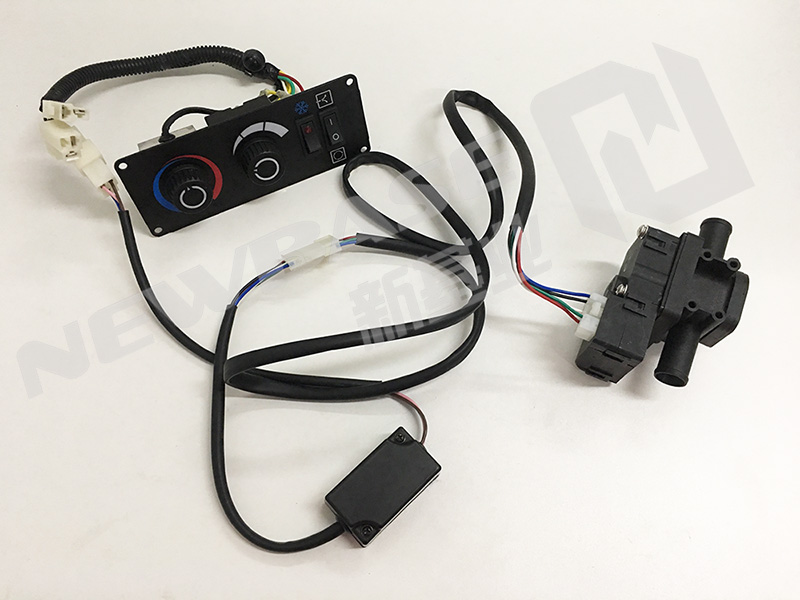

1. work with potentiometer
2. connector model could be customized.
2. connector model could be customized.
