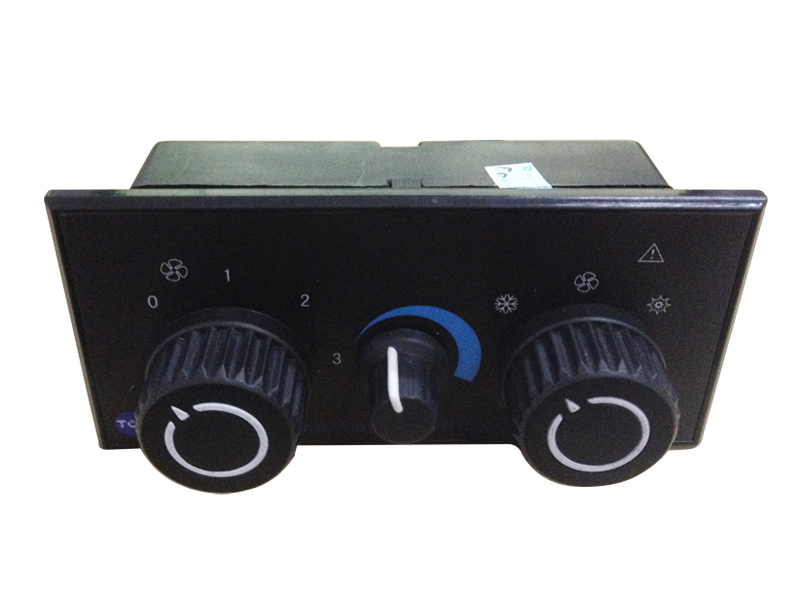

CG220204 air conditioner controller applies to internal climate control for construction vehicle and truck.
Main function
|
Cooling |
YES |
|
Heating |
YES |
|
Ventilation |
YES |
|
Fresh Air |
NO |
|
Power lost memory |
NO |
|
Error alarm |
YES |
|
Auto over-voltage protection |
YES |
|
Air flow regulation |
3 grades |
|
Temp regulation |
Linear setting |
|
Interior temp display |
NO |
Application:
YUTONG Heavy Machinery
|
Power supply |
DC12V/24V |
|
Power consumption |
1W |
|
Current |
Max.100mA |
|
Dimensions |
115X55X49mm |
|
Input |
1) Interior temp. sensor 2) Pressure sensor 3) A/C power(generator) 4) ACC(battery) 5) Backlight power |
|
Output |
1) Fan high 2) Fan medium 3) Fan low 4) Compressor clutch 5) Heating |
|
Display |
Marked |
|
Ambient temperature |
-30℃—80℃ 5%－95%RH Non-condensing |
|
Storage temperature |
-10℃—70℃ 5%－95%RH Non-condensing |
|
Protection |
IP43 |
|
EMC |
EN50081&EN50082-2 |
|
Security level |
Applied to EN61010-II, Pollution degree: II |
|
Weight |
200g |
Dimension drawing
.jpg)
1. Cooling, Heating, Fan speed
2. With big current (20A max) output, it could drive the fan motor directly without extended relay.
3. Special design for construction vehicle, Truck, Cabin, Van, etc
4. Program customer-design
5. Custom LOGO
