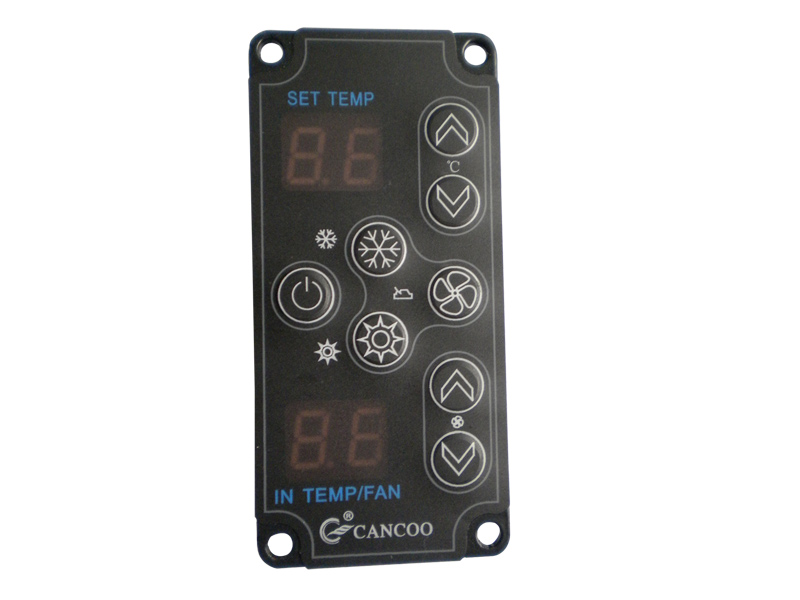

CG220208 construction vehicle & truck mini air conditioning controller

CG220208 construction vehicle & truck mini air conditioning controller

Main functions:

  • Cooling
  • Warming
  • Ventilation
  • Fresh air
  • Power lost memory

Send E-mailget price

Share with:
  • description
  • technical data
  • advantage
  • Variant Products
  • Inquiry

CG220208 dual LED micro-controller applies to internal climate control for construction and truck.



Main function



Cooling

YES

Heating

YES

Ventilation

YES

Fresh Air

YES

Power lost memory

YES

Error alarm

YES

Auto over-voltage protection

YES

Air flow regulation

3 grades

Interior temp display

YES





The shift function (check by manual operation)

-Compel cooling

-Compel heating

-Check air outlet temp



Application:

 KINGTECH

Power supply

DC12V/24V

Power consumption

2.5 W

Current

Max.200mA

Dimensions

45X95X44.5mm

Input

1) Interior temp. sensor

2) Defrost sensor

3) Pressure sensor

4) A/C power(generator)

5) ACC(battery)

6) Backlight power

Output

1) Fan high

2) Fan medium

3) Fan low

4) Compressor clutch

5) Heating

6)Fresh air

Display

LED

Ambient temperature

-30℃—80 5%95%RH Non-condensing

Storage temperature

-10℃—70 5%95%RH Non-condensing

Display precision

Temp value. Dual digit display, Accuracy,1 °c

Protection

IP43

EMC

EN50081&EN50082-2

Security level

Applied to EN61010-II, Pollution degree: II

Weight

185g











Dimension drawing

a.       Dual air condition system control

b.       Wide range application: Double-decker bus, Climate space separated Van, Ambulance, etc.

c.       Program customer design

d.       Custom LOGO

 1. CG220208-a

a. Dimension enlarger a little
b. Mounting type-retaining clips
c. Body shell material - ABS


2. CG220208-b

a. horizontal appearance design
b. Mounting holes for assembly
c. Body shell material - metal

3. CG220208-c

a. Dimension enlarger a little
b. Mounting type-retaining clips
c. Body shell material – ABS
