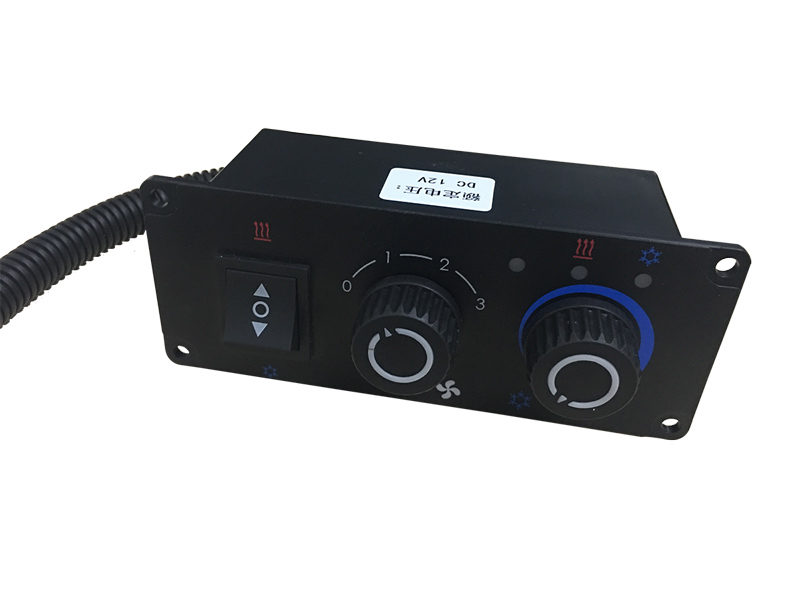

CG220218 air conditioner controller (manual) applies to the internal climate control for construction vehicle.
Main function
|
Cooling |
YES |
|
Heating |
YES |
|
Fresh Air |
YES |
|
Auto Control |
NO |
|
Power lost memory |
NO |
|
Error alarm |
YES |
|
Air flow regulation |
3 grades |
|
Temp regulation |
Linear setting |
Application:
Bergstrom,HIGER
|
Power supply |
DC12/24V |
|
Power consumption |
3W |
|
Current |
Max.300mA |
|
Dimensions |
150X60X86mm |
|
Input |
1) Interior temp. sensor 2) Defrost sensor 3) Pressure switch 4) ACC(battery) |
|
Output |
1) Fan high 2 Fan medium 3) Fan low 4) Compressor clutch 5)Heating 6) Fresh air |
|
Display |
Marked |
|
Ambient temperature |
-30℃—80℃ 5%－95%RH Non-condensing |
|
Storage temperature |
-10℃—70℃ 5%－95%RH Non-condensing |
|
Protection |
IP43 |
|
EMC |
EN50081&EN50082-2 |
|
Security level |
Applied to EN61010-II, Pollution degree: II |
|
Weight |
315g |
Dimension drawing
.jpg)
1. With big current (20A max) output, it could drive the fan motor directly without extended relay.
2. Customer- deisgn Logo
3. Mature product
1. CG220218-a
a. Cooling & Heating Design
b. Big Current Resistance
c. Good Reliablity
d. Customer logo design
