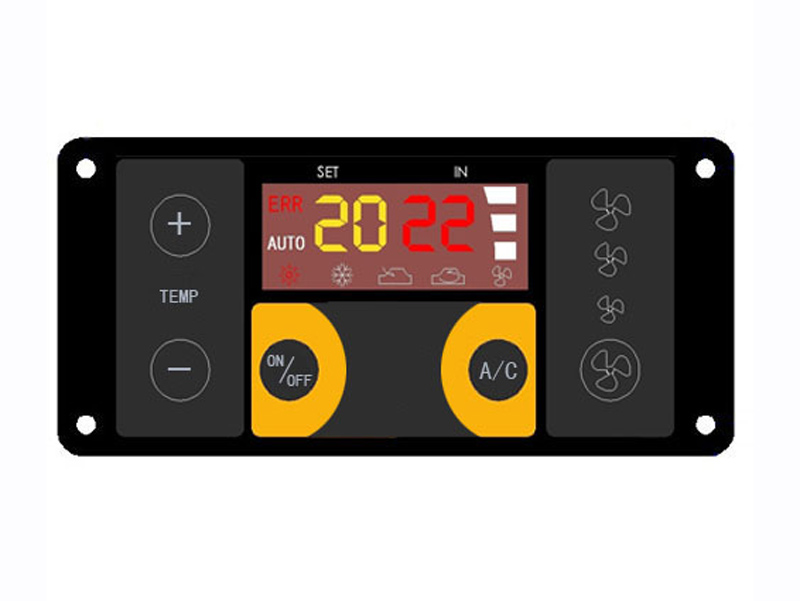

CG220215 Auto digital air conditioner controller applies to internal climate control of construction vehicle, truck, Van, etc
Main function
|
Cooling |
YES |
|
Heating |
NO |
|
Ventilation |
NO |
|
Fresh Air |
NO |
|
Power lost memory |
YES |
|
Error alarm |
YES |
|
Auto over-voltage protection |
YES |
|
Air flow regulation |
3 grades |
|
Interior temp display |
YES |
The shift function (check by manual operation)
-Compel cooling
-Check defrost temp
Application:
FOTON,CANCOO
|
Power supply |
DC12V/24V |
|
Power consumption |
2 W |
|
Current |
Max.200mA |
|
Dimensions |
132X62X54mm |
|
Input |
1) Interior temp. sensor 2) Defrost sensor 3) Pressure switch 4) A/C power(generator) 5) ACC(battery) 6) Backlight power |
|
Output |
1) Fan high 2) Fan medium 3) Fan low 4) Compressor clutch |
|
Display |
LED |
|
Ambient temperature |
-30℃—80℃ 5%－95%RH Non-condensing |
|
Storage temperature |
-10℃—70℃ 5%－95%RH Non-condensing |
|
Display precision |
Temp value. Dual digit display, Accuracy,1 °c |
|
Protection |
IP43 |
|
EMC |
EN50081&EN50082-2 |
|
Security level |
Applied to EN61010-II, Pollution degree: II |
|
Weight |
170g |
Dimension drawing
.jpg)
a. Special design for engineer truck cabin
b. Cooling only, no heater or water valve in the AC system
c. Program customer-design
d. Custom LOGO
