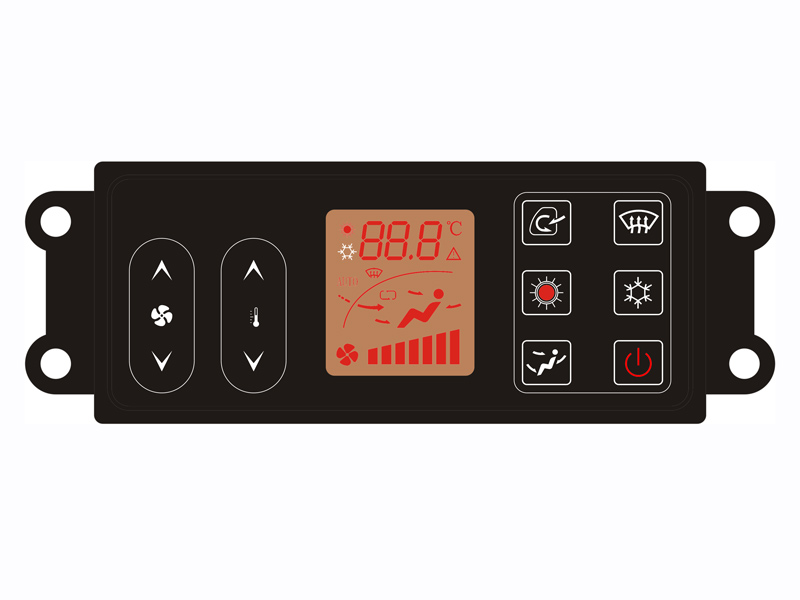

CG220214 vehicle HVAC controller

CG220214 vehicle HVAC controller

Main functions:

  • Cooling
  • Warming
  • Fresh air
  • Power lost memory
  • Error alarm
  • 4-grade air-flow adjustment

Send E-mailget price

Share with:
  • description
  • technical data
  • advantage
  • Variant Products
  • Inquiry

CG220214 auto HVAC controller applies to internal climate control for construction vehicle, truck, Van, etc



Main function



Cooling

YES

Heating

YES

Ventilation

NO

Fresh Air

YES

Power lost memory

YES

Error alarm

YES

Auto over-voltage protection

YES

Air flow regulation

4 grades

Air blowing setting

YES

Interior temp display

YES





The shift function (check by manual operation)

-Compel cooling

-Check defrost temp



Application:

 Bergstrom

Power supply

DC12V/24V

Power consumption

2 W

Current

Max.200mA

Dimensions

132X62X54mm

Input

1) Interior temp. sensor

2) Defrost sensor

3) Pressure sensor

4) ACC(battery)

5) Backlight power

Output

1)Fan full

2) Fan high

3) Fan medium

4) Fan low

5) Compressor clutch

6)Heating

7)Head-blowing

8)Feet-blowing

9)Defrost

10)Fresh air

Display

LED

Ambient temperature

-30℃—80 5%95%RH Non-condensing

Storage temperature

-10℃—70 5%95%RH Non-condensing

Display precision

Temp value. Dual digit display, Accuracy,1 °c

Protection

IP54

EMC

ISO 7637-2

Security level

Applied to EN61010-II, Pollution degree: II

Weight

170g











Dimension drawing



a.       special design for the construction truck

b.       Against harsh environment design

c.       Program customer-design

d.       Custom LOGO

1.       CG220214-a

a.       Outer case customer design

b.       CUSTOM logo

c.       special design for the construction truck

d.       Against harsh environment design

e.       Program customer-design

2.       CG220214-b

a.       CUSTOM logo

b.       Against harsh environment design

c.       Program customer-design
