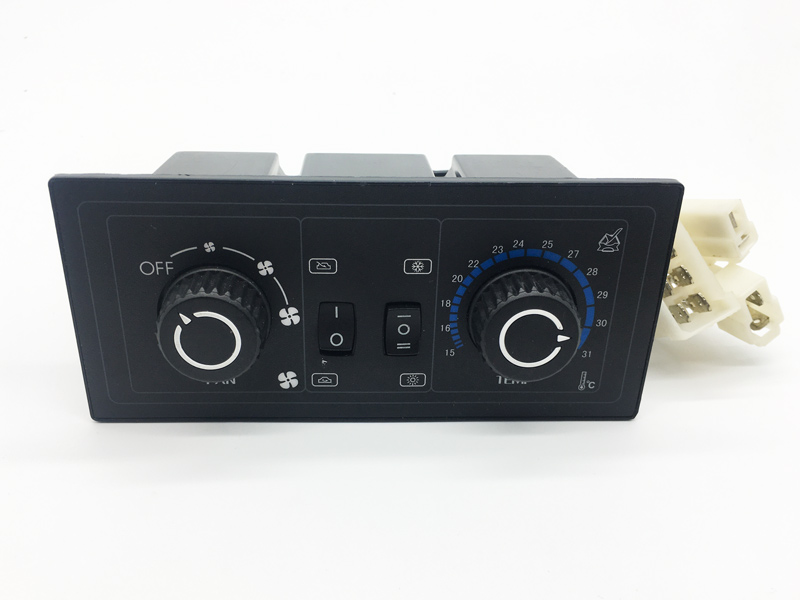

CG220212 vehicle HVAC controller (manual) applies to the internal climate control of construction vehicle, truck, VAN, etc
Main function
|
Cooling |
YES |
|
Heating |
YES |
|
Fresh Air |
YES |
|
Auto Control |
NO |
|
Power lost memory |
NO |
|
Error alarm |
YES |
|
Air flow regulation |
3 grades |
|
Temp regulation |
Linear setting |
Application:
YUXIN Automotive Air Conditioner, XGMA Machinery, LIUGONG Machinery
|
Power supply |
DC12/24V |
|
Power consumption |
2.5W |
|
Current |
Max.150mA |
|
Dimensions |
152X66X56mm |
|
Input |
1) Interior temp. sensor 2) Defrost sensor 3) Pressure switch 4) A/C power(generator) 5) ACC(battery) 6) Backlight power (optional) |
|
Output |
1) Condenser fan 2) Fan high 3) Fan medium 4) Fan low 5) Fresh air on 6) Compressor clutch 7) Heating |
|
Display |
Marked +backup lamp |
|
Ambient temperature |
-30℃—80℃ 5%－95%RH Non-condensing |
|
Storage temperature |
-10℃—70℃ 5%－95%RH Non-condensing |
|
Protection |
IP32 |
|
EMC |
EN50081&EN50082-2 |
|
Security level |
Applied to EN61010-II, Pollution degree: II |
|
Weight |
260g |
Dimension drawing
.jpg)
1. Manual design, Auto control
2. Heating, cooling, Ventilation, Fan speed, Interior & Exterior air ventilation
3. Custom logo
