CK200213 Bus Air Condition Controller

CK200213 auto controller applies to bus internal climate control.

Main functions:

  • auto control
  • Cooling & heating
  • Air Ventilation
  • self-check
  • power down memory
  • error alarm
  • int /ext temp display
  • multi-air volume regulation

Send E-mailget price

Share with:
  • description
  • technical data
  • advantage
  • Variant Products
  • Inquiry
CK200213 auto controller applies to the air conditioning control of vehicle.

Main function:
Cooling YES
Heating NO
Ventilation NO
Fresh Air YES
Auto Control YES
Power lost memory YES
Error alarm YES
Auto over-voltage protection YES
Air flow regulation 3 grades
Interior temp display YES
Exterior temp display NO

The shift function (check by manual operation)
-Running time query
-Air outlet temp display
-Compel cooling

Application:
YUTONG bus
Power supply DC24/12V
Power consumption 3w
Current Max.200mA

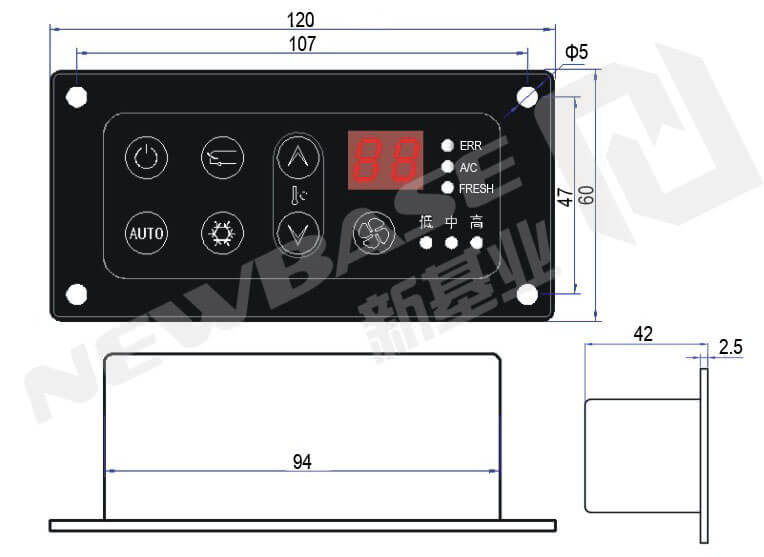

Dimensions(mm) 120x60x42mm
Input 1) Air inlet temp. sensor 2)Defrost sensor 3)Pressure switch 4)ACC Power (battery) 6)Backlight power
Output 1)Condenser fan 2)Fan high 3)Fan medium 4)Fan low 5)Fresh air on 6)Fresh air off 7)Compressor clutch
Display LED
Ambient temperature -30°c—80°c 5%-95%RH Non-condensing
Storage temperature -10°c—70°c 5%-95%RH Non-condensing
Display precision Temp value. Dual digit display, Accuracy,1 °c
Protection IP43
EMC EN50081&EN50082-2
Security level Applied to EN61010-II,Pollution degree :II
Weight: 305g


1.Program customer-design
2.Custom LOGO
3.Standard product, fast delivery
4.Mental outer case design
