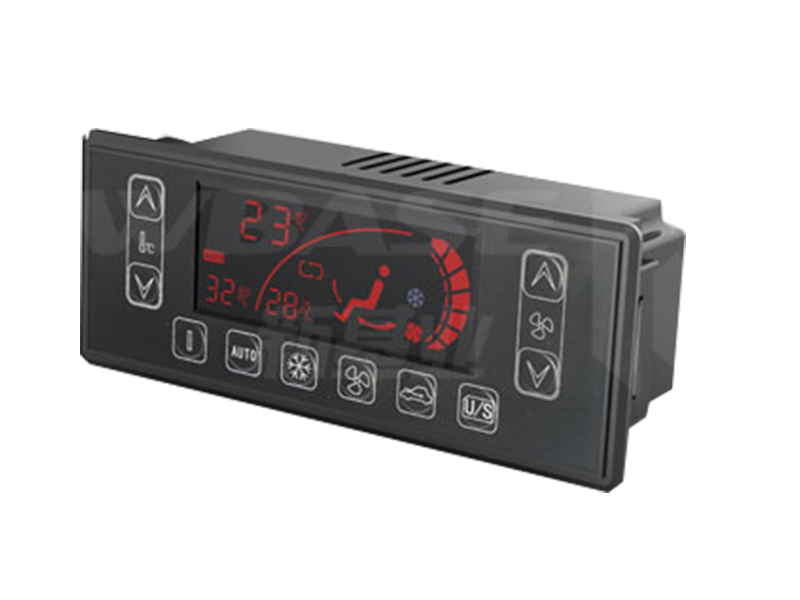

CK200206 air conditioner controller applies to the air condition control of double-decker bus.
The fan speed of each decker could be controlled separately.
Main function
The shift function (check by manual operation)
• Running time check
• Defrost temp display
• Compel cooling
Application:
YUTONG bus, ZHONGTONG bus
The fan speed of each decker could be controlled separately.
Main function
| Cooling | YES |
| Heating | NO |
| Ventilation | NO |
| Fresh Air | YES |
| Auto Control | YES |
| Power lost memory | YES |
| Error alarm | YES |
| Auto over-voltage protection | YES |
| Air flow regulation | 3 grades |
| Interior temp display | YES |
| Exterior temp display | NO |
| Independent air-flow setting for both deck | YES |
The shift function (check by manual operation)
• Running time check
• Defrost temp display
• Compel cooling
Application:
YUTONG bus, ZHONGTONG bus
| Power supply | DC24V |
| Power consumption | 4.5W |
| Current | Max.200mA |
| Dimensions | 168X66X54mm |
| Input | 1) Interior temp. sensor 2) Defrost sensor 3) Pressure sensor 4) ACC(battery) 5) Backlight power |
| Output | 1) Condenser fan 2) Fan high 3) Fan medium 4) Fan low 5) Fresh air on 6) Fresh air off 7) Compressor clutch |
| Display | LED (red) |
| Ambient temperature | -30℃—80℃ 5%－95%RH Non-condensing |
| Storage temperature | -10℃—70℃ 5%－95%RH Non-condensing |
| Display precision | Temp value. Dual digit display, Accuracy,1 °c |
| Protection | IP43 |
| EMC | EN50081&EN50082-2 |
| Security level | Applied to EN61010-II, Pollution degree: II |
| Weight | 360g |
1.Special design for double-decker bus air condition control
2.Independent fan speed control of each decker, to make sure the comfortable travel condition
3.LED design, Ture color and good-looking design
4.Cooling, Fully auto control
5.Running time check, Defrost Temp. display
6.Program customer-design
7.Custom logo
2.Independent fan speed control of each decker, to make sure the comfortable travel condition
3.LED design, Ture color and good-looking design
4.Cooling, Fully auto control
5.Running time check, Defrost Temp. display
6.Program customer-design
7.Custom logo
