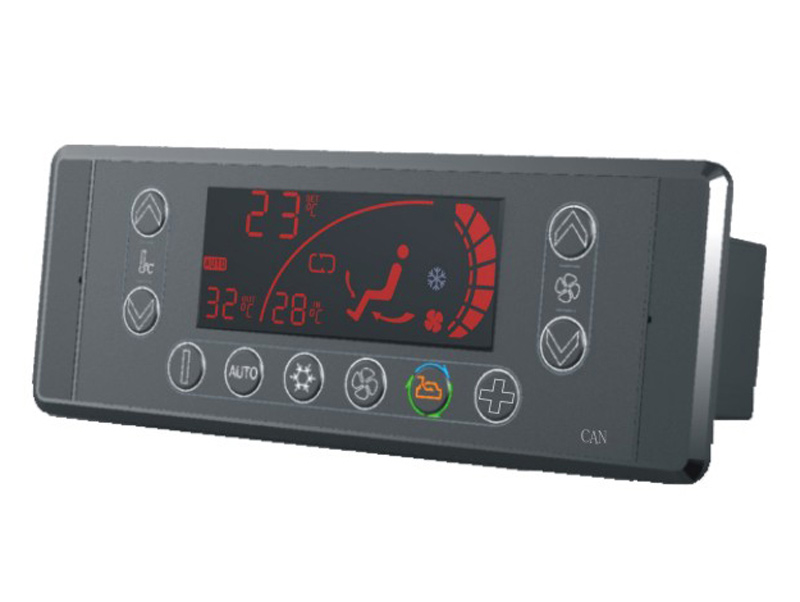

CK200210 fully-automatic controller applies to the internal climate control for CAN-bus.
The CANbus digital communicate through CANH and CANL among controller and other parts. Hence, it improves the transition accurancy, control reliability, as well as reduce the amount of harness and connector.
Main functions
The shift function (check by manual operation)
-Running time query
-Air outlet temp display
-Compel cooling
-Check interior temp when controller off
-Control fresh air when controller off
Application:
YUTONG Bus, KINGLONG Bus
The CANbus digital communicate through CANH and CANL among controller and other parts. Hence, it improves the transition accurancy, control reliability, as well as reduce the amount of harness and connector.
Main functions
| Cooling | YES |
| Heating | NO |
| Ventilation | YES |
| Fresh Air | YES |
| Auto Control | YES |
| Power lost memory | YES |
| Error alarm | YES |
| Auto over-voltage protection | YES |
| Air flow regulation | 7 grades |
| Self-check/ disinfection | YES |
| Interior temp display | YES |
| Exterior temp display | YES |
The shift function (check by manual operation)
-Running time query
-Air outlet temp display
-Compel cooling
-Check interior temp when controller off
-Control fresh air when controller off
Application:
YUTONG Bus, KINGLONG Bus
| Power supply | 24V(DC20V-DC32V) |
| Power consumption | 3.5W |
| Current | Max.210mA |
| Dimensions | 168X66X56mm |
| Input | 1) ACC(battery) 2) Backlight power |
| Signal transmission | 1) CAN-H 2) CAN-L |
| Display | LED (true color/red) |
| Ambient temperature | -30℃—80℃ 5%－95%RH Non-condensing |
| Storage temperature | -10℃—70℃ 5%－95%RH Non-condensing |
| Display | Temp value. Dual digit display, Accuracy,1 °c |
| Protection | IP43 |
| EMC | EN50081&EN50082-2 |
| Security level | Applied to EN61010-II, Pollution degree: II |
| Weight | 233g |
1.CANbus design
2.Distribution control system
3.Precision digital transition, Save cost
2.Distribution control system
3.Precision digital transition, Save cost
