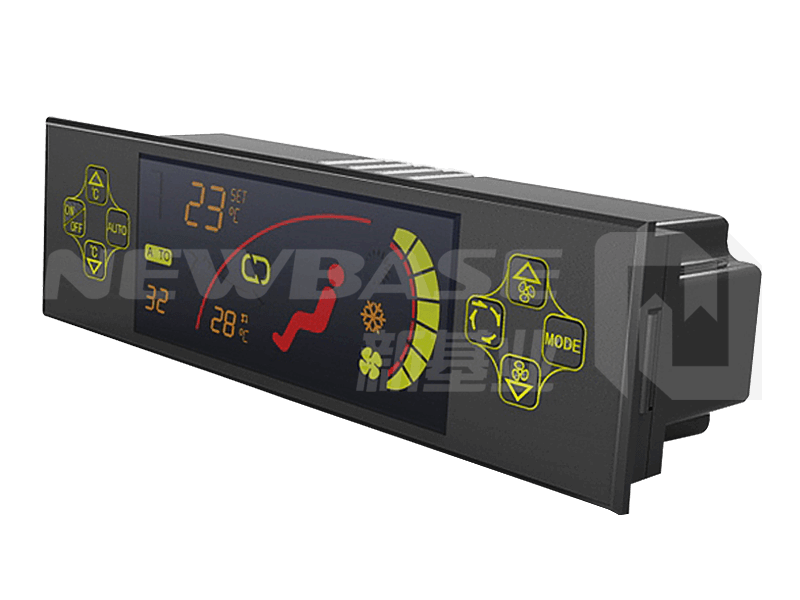

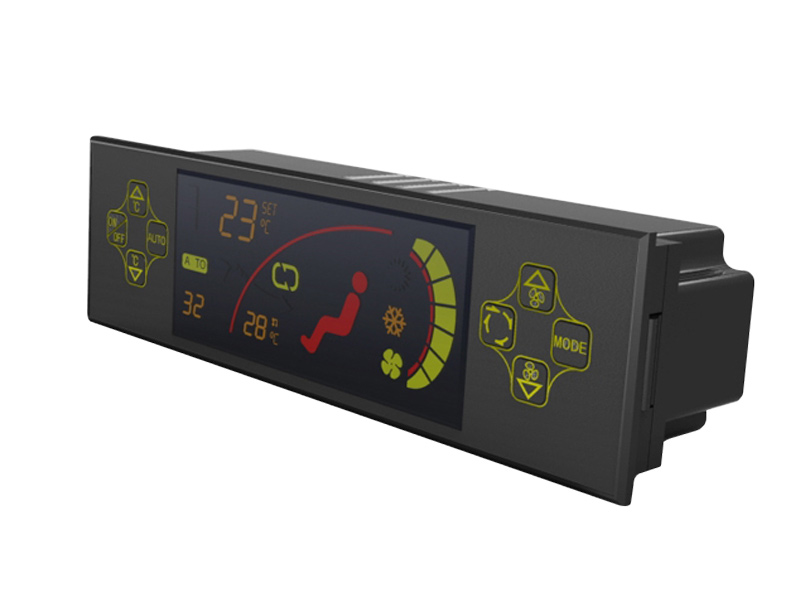

CK200207 fully-automatic controller applies to the CANbus air condition control of bus.

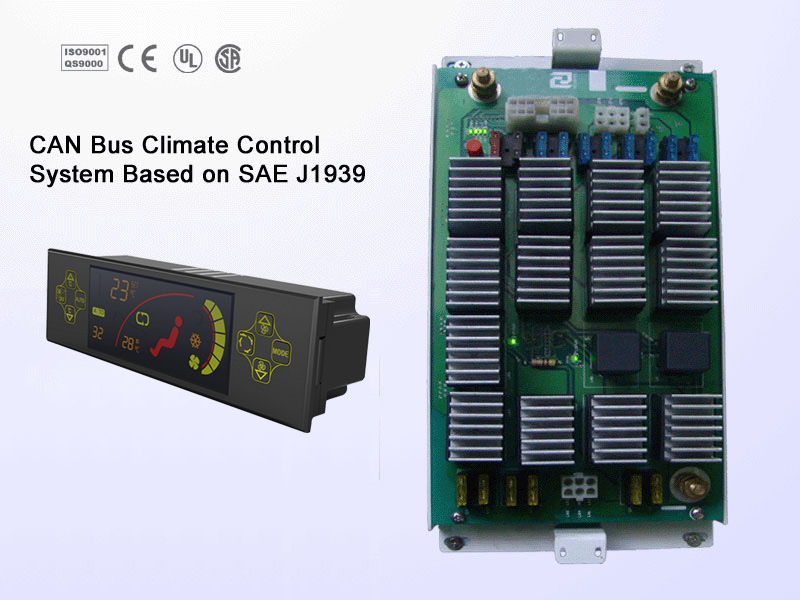

The CANbus digital communicate through CANH and CANL among controller and other parts. Hence, it improves the transition accurancy, control reliability, as well as reduce the amount of harness and connector
Main function
The shift function (check by manual operation)
-Running time check
- Air outlet temp display
-Compel cooling
-Condenser fan sensor temp
-Checking interior/exterior temp at controller off
Application:
KINLONG bus, KINGTECH
The CANbus digital communicate through CANH and CANL among controller and other parts. Hence, it improves the transition accurancy, control reliability, as well as reduce the amount of harness and connector
Main function
| Cooling | YES |
| Heating | NO |
| Ventilation | YES |
| Fresh Air | YES |
| Auto Control | YES |
| Power lost memory | YES |
| Error alarm | YES |
| Auto over-voltage protection | YES |
| Air flow regulation | 7 grades（PWM） |
| Self-check/ disinfection | YES |
| Interior temp display | YES |
| Exterior temp display | YES |
The shift function (check by manual operation)
-Running time check
- Air outlet temp display
-Compel cooling
-Condenser fan sensor temp
-Checking interior/exterior temp at controller off
Application:
KINLONG bus, KINGTECH
| Power supply | DC24V |
| Power consumption | 3.5W |
| Current | Max.210mA |
| Dimensions | 155X44X41mm |
| Input | 1) Interior temp. sensor 2) Defrost sensor1/2 3) Pressure sensor (high, medium, low) 4) A/C power(generator) 5) ACC(battery) 6) Backlight power |
| Output | 1) Condenser fan 2-grade PWM output 2) Evaporator fan 7-grade PWM output 3) Fresh air on 4) Fresh air off 5) Compressor clutch 6) Excitation |
| Display | LED (red) |
| Ambient temperature | -30℃—80℃ 5%－95%RH Non-condensing |
| Storage temperature | -10℃—70℃ 5%－95%RH Non-condensing |
| Display precision | Temp value. Dual digit display, Accuracy,1 °c |
| Protection | IP43 |
| EMC | EN50081&EN50082-2 |
| Security level | Applied to EN61010-II, Pollution degree: II |
| Weight | 180g |
Dimension drawing
a.CANBUS digital communication through CANH AND CANL.
b.The control signal accuracy and reliability is improved
c.Reduce the cost of the entire air condition system
d.Program customer-design
e.Custom logo
b.The control signal accuracy and reliability is improved
c.Reduce the cost of the entire air condition system
d.Program customer-design
e.Custom logo
