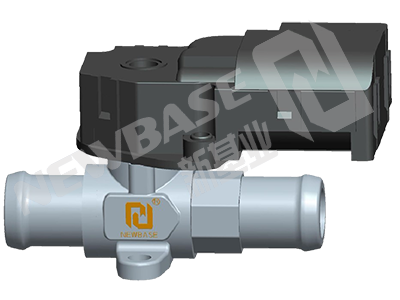

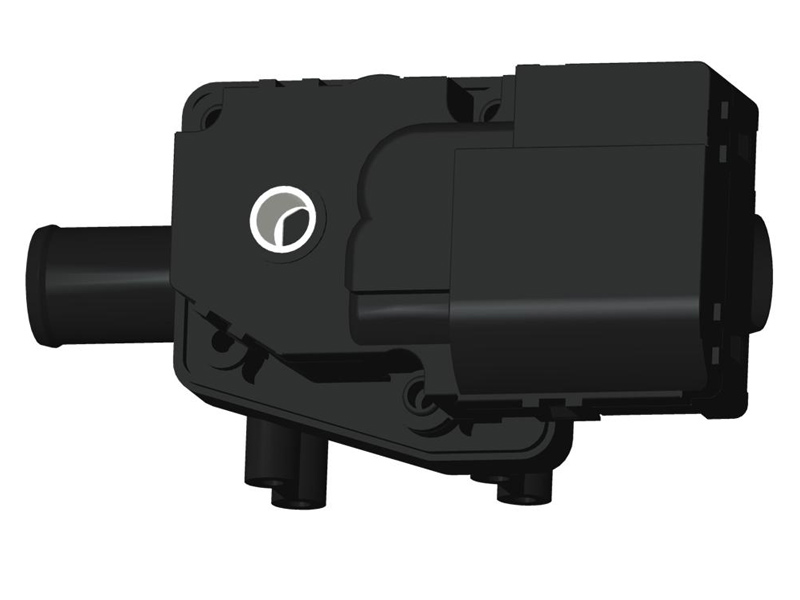

NENEWASE water valve is combined by NEWBASE actuator and the valve body.
1.Function:
Regulate the water flow by the valve opening driven by actuator.
2.Application case:
NEWBASE water valve is widely used for Vehicular Air Conditioning & Heating Control System, such as bus, van, auto ,engineering truck, refrigeration system and so on.
3.Accessories:
• Bracket: plentiful selects, or customization;
• Lever: plentiful selects, or customization;
• Connector: customization.
1.Function:
Regulate the water flow by the valve opening driven by actuator.
2.Application case:
NEWBASE water valve is widely used for Vehicular Air Conditioning & Heating Control System, such as bus, van, auto ,engineering truck, refrigeration system and so on.
3.Accessories:
• Bracket: plentiful selects, or customization;
• Lever: plentiful selects, or customization;
• Connector: customization.
| Power supply | DC12V /DC24V/DC48V |
| Medium | cold ,hot water |
| Medium temp | -5°c--100°c |
| Flow characteristic | ON/OFF, linear, graded |
| Max diameter | DN13(inner), DN17(outer) |
| Leakage rate | <1L/h(no leakage at factory) |
| Interface form | hoop |
| Rotation angle | 90°c |
| Installation | Horizontally, upright |
| Ambient temperature | -30°c—80°c |
| Storage temperature | -40°c—85°c |
| Maintenance | Maintenance free |
| Dimensions | 112x57x72mm, (wire length could be customized) |
| Weight | 175g |
| Quality certification | TS16949/ISO9001 |
Light design, Easy connection.
Mass production, cost in control.
Wire cable and connector model could be modified as per customer need.
Mass production, cost in control.
Wire cable and connector model could be modified as per customer need.
According to the actual application, different actuator is optional.
ON/OFF Type — two wires, it open the valve to some an angle and close by changing the polarity of wiring.
Switch ON/OFF Type — three wires, it turn on/off the valve by putting through/cutting off the control wire.
Temp Type — five wires, the actuator operates by switching the polarity of wiring, it could also give a feedback of the opening to the HVAC system.
Mode Type — seven wires, it could control the valve to stop on different opening percentage.
Voltage control Type — it turn on/off the valve gradually , driven by 0~10 V voltage signal .
Manual Type — the valve is on/off by hand with a force arm.
ON/OFF Type — two wires, it open the valve to some an angle and close by changing the polarity of wiring.
Switch ON/OFF Type — three wires, it turn on/off the valve by putting through/cutting off the control wire.
Temp Type — five wires, the actuator operates by switching the polarity of wiring, it could also give a feedback of the opening to the HVAC system.
Mode Type — seven wires, it could control the valve to stop on different opening percentage.
Voltage control Type — it turn on/off the valve gradually , driven by 0~10 V voltage signal .
Manual Type — the valve is on/off by hand with a force arm.
