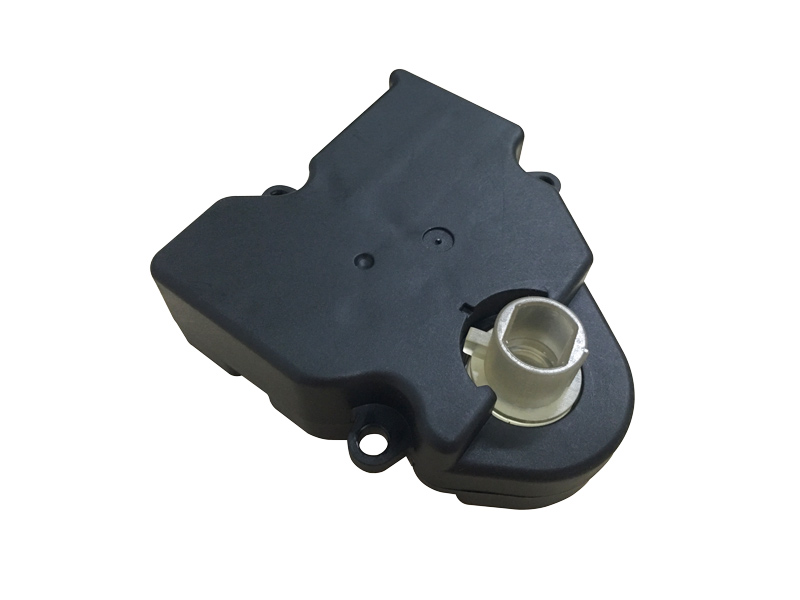

The voltage control actuator valve is designed for the bus/van/mini bus/car HAVC heating/ventilation system.
It may get the continuous control of valve/damper through put in different voltage value among 0V~10V
Dimension:
|
Power supply |
DC24V /DC12V |
|
Control mode |
0-10V control |
|
Power consumption |
3W |
|
Current |
Max.70mA |
|
Connector |
Molding |
|
Torque |
6kgf.cm |
|
Running time |
2±1rpm |
|
Locked torque |
20kgf.cm |
|
Locked current |
Max.300mA |
|
Noise level |
Max.50dB(A) |
|
Ambient temperature |
-30°c—80°c |
|
Storage temperature |
-40°c—85°c |
|
Life |
Max.200,000 cycle |
|
Dimensions |
93x82x32mm |
|
Weight |
120g |
|
Quality certification |
TS16949/ISO9001 |
Connection:
