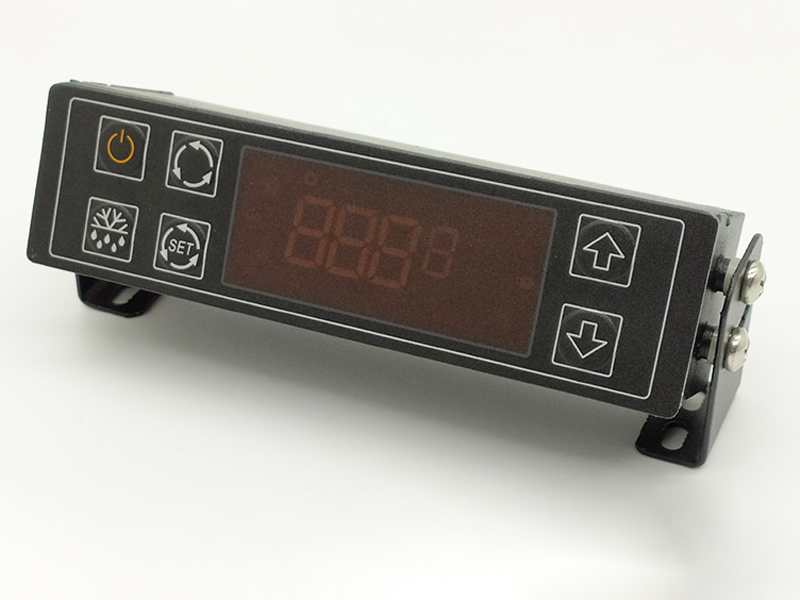

CL200204 Truck Refrigeration Unit Controller

Main functions:

  • Freezing
  • Fresh
  • Defrost time setting
  • defrost recycle setting
  • Error alarm
  • working time checking

Send E-mailget price

Share with:
  • description
  • technical data
  • advantage
  • Variant Products
  • Inquiry
CL200204 controller applies to refrigeration & freezing control system for truck refrigeration& trailer container.



Main function



Freezing

YES

Refreshing

YES

Defrost

YES

Auto Control

YES

Power lost memory

YES

Error alarm

YES

Auto over-voltage protection

YES

Air flow regulation

NO

Interior temp display

YES

Exterior temp display

NO

Air outlet temp

YES

Standby

YES





The shift function (check by manual operation)

- Temp deviation regulation

- Defrost temp display

- Air outlet temp display

- Power supply checking

- Working time checking



Power supply

DC24V/12V

Power consumption

3w

Current

Max.3A

Dimensions(mm)

125x34x42mm

Input

1) Interior temp. sensor

2)Air outlet sensor

3)Defrost sensor

4)High Pressure switch

5) Low pressure switch

6)ACC power

Output

1)Evaporator

2)Condenser fan

3)Compressor switch

4)Defrost control

Display

LED

Ambient temperature

-30°c—80°c  5%-95%RH Non-condensing

Storage temperature

-10°c—70°c   5%-95%RH Non-condensing

Display precision

Temp value. Dual digit display, Accuracy,1 °c

Protection

IP43

EMC

EN50081&EN50082-2

Security level

Applied to EN61010-II,Pollution degree :II

Weight:

 450g


Dimension





1.       Mature product for mass production

2.       Customer-oriental logo available

3.       Customer-design available

4.       Auto Control

5.       Self-check temp info/defrost cycle

6.       Metal body case

7.       With mounting bracket , suitable for the dash panel where cut mounting hole is not available.

8.       Switching between and
