DC0100B8B6W24 Electric bus AC Control System with drive

Main functions:

Send E-mailget price

Share with:
  • description
  • technical data
  • advantage
  • Variant Products
  • Inquiry
 Application:

12m Fully Electric Bus AC System with 8 Blowers and 6 Condenser fans



Composition structure



1- Epoxy plate base

Excellent insulating property,moisture resistance, heat resistance;

On backside, add shockproof protection layer;

Can be cut with any dimension as per the actual mounting requirement;



2- Electric Cabinet

Insulated box, Bolts, HV fuse, Contactor

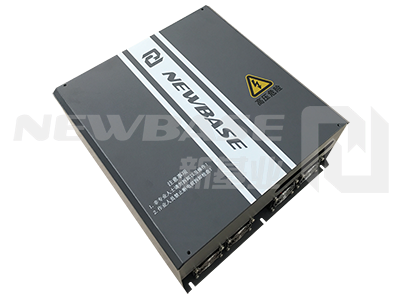

3- Converter inverter 2-in-1 Assy

Input 250~880VDC

 Inverter 15kw

Output 0~480VAC,32A,0~500Hz

DC-DC,3kw

Output 65A

     ●27.5V (for brushless motor)

     ● 14~27.5V (for brush motor)



4- Fuse board

Match the actual fan motor load



5- Control box

Based on the present model, CAN communication with control panel



6- Control Panel

Based on the present model, CAN communication with control box,

Can add CAN communication with vehicle
